4
WHEEL DRIVE
450
HITCH CAPACITY (KG)
17.5
FUEL TANK CAPACITY (L)
260
GROUND CLEARANCE (MM)
BUILT FOR THE TOUGHEST CONDITIONS
Our most powerful model, built for the toughest environments and most arduous working conditions.
FUEL INJECTION
Fuel injection improves throttle response and fuel efficiency, while delivering power consistently and improving starting.

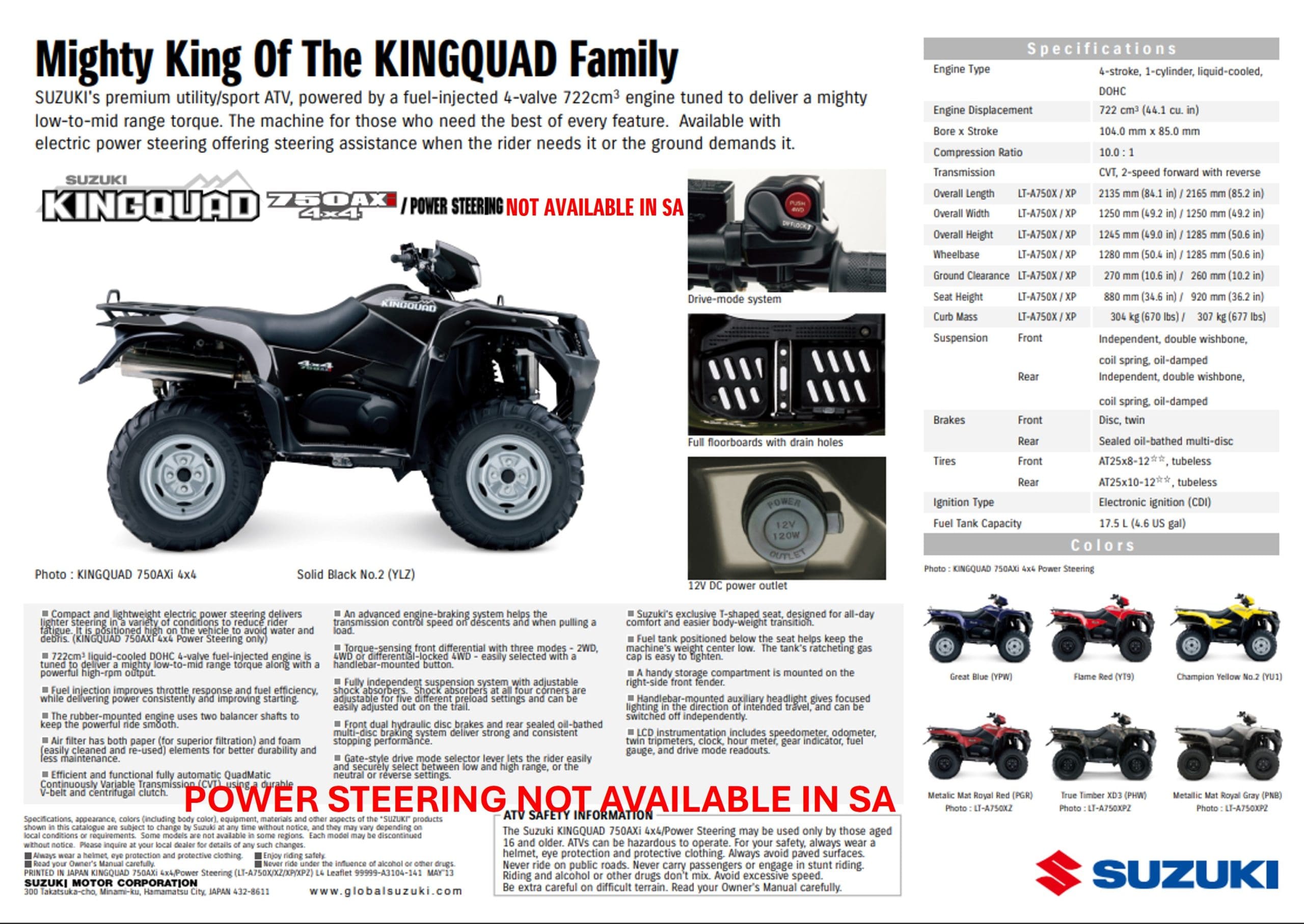

download brochure
FUEL INJECTED ENGINE
Smooth and useable power for any task, due to the instant throttle response and improved fuel efficiency designed specifically for all terrain use.
ENQUIRE NOW
SEALED OIL-BATHED
MULTI-DISC REAR BRAKE
Experience consistently strong stopping power and reliability from the sealed oil-bathed multi-disc rear brake unit, which prevents mud, dirt or water from contaminating the brakes.
ENQUIRE NOW
FULLY INDEPENDENT SUSPENSION
Feel comfortable all day long. The fully independent front and rear suspension, with the 5-way adjustable preload settings allow optimum traction whilst maintaining a superior ride quality.
ENQUIRE NOW
T-SHAPED SEAT FOR ALL-DAY COMFORT
We understand that when you spend hours on your ATV you need it to be comfortable. Our unique T-shaped seat, which we invented years ago and have fitted to our ATVs ever since, provides all-day comfort and freedom of movement you simply won’t find anywhere else.
download brochure
SPECIFICATIONS
DIMENSIONS AND WEIGHTS
| Oveall length | 2,135mm |
| Overall width | 1,250mm |
| Overall height | 1,245mm |
| Wheelbase | 1,280mm |
| Ground clearance | 270mm |
| Seat height | 880mm |
| Curb mass | 304kg |
ENGINE SPECIFICATIONS
| Engine type | 4-stroke, 1-cylinder, liquid-cooled, DOHC |
| Engine displacement | 722 cm³ |
| Bore x stroke | 104.0 mm x 85.0 mm |
| Transmission | CVT. 2-speed forward with reverse |
| Fuel tank | 17.5L |
CHASSIS SPECIFICATIONS
| Suspension | Front | Independent, double wishbone, coil spring, oil damped |
| Rear | Independent, double wishbone, coil spring, oil damped | |
| Brakes | Front | Disc, twin |
| Rear | Sealed oil-bathed multi-disc | |
| Tyres | Front | AT25x8-12**, tubeless |
| Rear | AT25x10-12**, tubeless |
